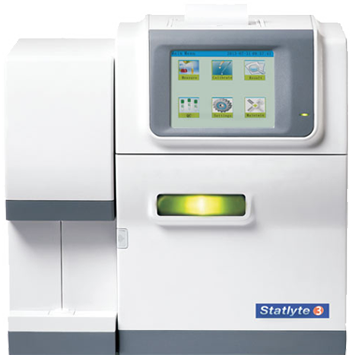

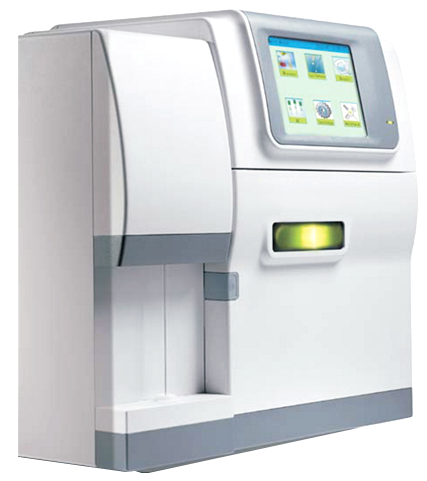

The Multiparameter Electrolytes Analyzer

High Performance ISE Measurement Download Brochure

Measure Electrolytes the easy way
  • Measure Na ,K ,Cl . Upgrade to Ca and pH or Li .
  • Economical: Lowest operating and maintenance cost.
  • High resolution color touch screen and printer.
  • Automatic reagent replacement warning.
  • Reliable fluid transport system.
  • High precision analysis round the clock.
  • Prompt application and service support.
Technical Specifications
  • Technology

    ISE (Ion Selectivity Electrode)

  • Sample

    Serum / CSF / etc

  • Sample Volume

    120 ul ( 100-200 programmable )

  • Throughput

    60 samples / hour

  • Calibration

    Automatic or On-demand

  • Printer

    Inner Thermal Printer

  • Display

    320* 240 Touch screen

  • Storage

    Up to 50,000 tests

  • Interface

    RS-232

  • Working Conditions

    Temperature: 15 - 30O C

  • Humidity

    20% - 80%

  • Power Requirement

    100-240AV, 50/60 Hz, 80W

  • Net weight

    8 Kg

Item Linearity (mmol/L) CV
K + 0.30 ~ 20.00 1.0%
Na + 20.0 ~ 200.0 1.0%
Cl - 20.0 ~ 200.0 1.0%
Ca 2+ 0.10 ~ 0.60 1.5%
Li + 0.20 ~ 5.00 1.5%
pH 3.00 ~ 11.00 0.5%
